Rineer Hydraulics, Inc was formed in 1967 and has been supplying high-torque hydraulic motors for industrial, marine and mobile applications for over 35 years. Rineer Hydraulics manufactures hydraulic motors in four basic size series each of which comes in a variety of displacements.

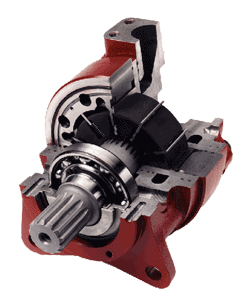

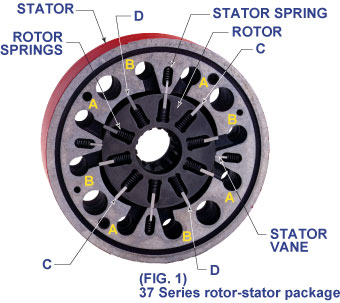

The Rineer Hydraulics motor is a bi-rotational rotary power converter utilizing working vanes in the rotating member and sealing vanes in the stationary member. These vanes are hydraulically and spring loaded, and are radiused on their crossing edges. The rotor vanes, when acted upon by a differential pressure, exert rotational force on the rotor. As oil enters the “A” ports, the rotor vanes rotate clock-wise toward the “B” ports. As each rotor vane is finishing its work cycle in a cavity, another rotor vane starts its work cycle in that cavity.
